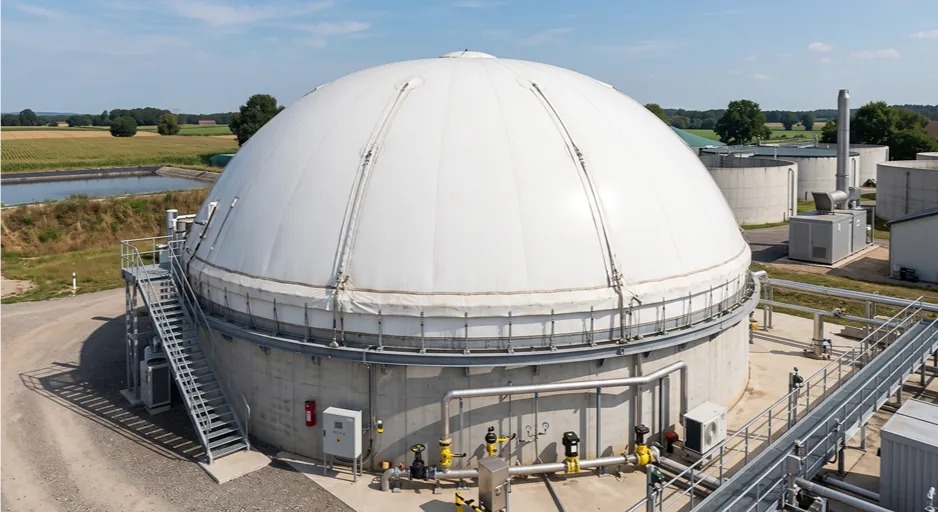

A dual membrane biogas dome looks simple from the outside. It is a round, soft-topped cover sitting over a digester. But the fabric that makes it work goes through many careful steps before it ever reaches a plant.
If you are a vendor, dealer or plant owner, it helps to know what goes into that fabric. It tells you what quality to expect and what questions to ask your supplier.
This blog walks through the process, from the base cloth to the final welded membrane.
What Is a Dual Membrane Biogas Dome?
A Dual Membrane Biogas Dome uses two layers of fabric.
- The inner membrane holds the biogas. It rises and falls as the gas volume changes.
- The outer membrane protects the inner one from rain, sun and wind. Air is kept between the two layers, which gives the dome its round shape.
Both layers are made from coated technical fabric. The inner one must hold gas without leaking. The outer one must handle the weather every single day. This is why the fabric matters so much.
Step 1: The Base Fabric
Everything starts with a strong woven cloth. High-strength polyester yarn is woven into a tight, even base. This base is what gives the fabric its pulling strength and its resistance to tearing.
The weave has to be even. Any weak or loose spot in the base can turn into a weak spot in the finished dome. That is why base cloth quality is the first thing that counts in technical textile manufacturing.
Step 2: Coating the Fabric
Next, the woven cloth is coated on both sides with PVC. This coating is what makes the fabric sealed and flexible. It closes the tiny gaps in the weave, so gas and water cannot pass through.
The coating is applied in controlled layers. It has to be even across the whole roll. Thin patches would let gas escape, and thick patches would make the fabric stiff.
For gas holding and outdoor use, the surface then gets a top finish. This is where PVDF coated fabric comes in. The PVDF top layer helps the surface stay clean, resist dirt and hold up in strong sun. It suits biogas domes well, since the fabric sits outdoors in all weather.
The base coated fabric for Biodomes Membranes India is engineered by SIOEN Industries of Belgium, a well-known name in coated technical textiles. That gives a steady and dependable starting point for every dome.
Step 3: Checking the Fabric
Before the fabric goes any further, it is checked. Good quality control at this stage saves a lot of trouble later.
Common checks include:
- Strength. The fabric should resist pulling and tearing.
- Coating evenness. The coating should look smooth and uniform.
- Surface look. No marks, bubbles or thin spots.
- Weldability. The coating must join cleanly during welding.
- Colour match. Every roll should look the same.
Only fabric that passes goes on to the next step.
Step 4: Design and Cutting
Each dome is planned to the customer's size and need. The dome design is turned into a set of flat panels, and each panel has an exact shape. Together, these panels form the round dome when joined.
Accuracy matters here. If panels are cut even a little wrong, they will not fit right when joined. The fabric is measured and cut with care, so every panel matches the plan.
Step 5: The Fabric Welding Process
This is the heart of the work. The panels are joined by fabric welding, not by stitching.
Why welding and not sewing?
Sewing makes tiny holes along every seam. For a gas-holding membrane, that is a problem. Welding joins the coated surfaces together into one piece, so there are no holes for gas or water to pass through.
How the fabric welding process works:
- Two panel edges are laid over each other with a set overlap.
- Controlled heat softens the PVC coating on both edges.
- Pressure presses the softened surfaces together.
- As they cool, they bond into one strong, sealed seam.
Heat, pressure and speed all have to be right. Too little heat gives a weak bond. Too much can damage the fabric. Skilled operators and well-kept machines make the difference between an average seam and a great one.
Since the inner membrane holds gas, its seams are especially important. Each one has to be fully sealed.
Step 6: Testing the Seams and the Membrane
After welding, the work is checked again. Seams are looked at closely for gaps, lifting edges or weak spots. Strength checks make sure the joins hold under tension.
Because a dome works under gas and air pressure, these checks matter a lot. A strong, sealed seam is what keeps the biogas inside the dome and the weather outside.
Step 7: Finishing and Packing
Once the membranes pass all checks, they are finished, folded with care and packed for transport. Careful folding matters, since sharp creases can stress the coating. Good packing means the membrane reaches the site in the same condition it left in.
What Makes Biogas Dome Fabric Different?
Not every coated fabric suits a biogas dome. This fabric has to do several jobs at once:
- Hold gas without leaking
- Handle sun and rain every day
- Stay flexible as the inner membrane moves up and down
- Resist dirt and weather with little upkeep
- Weld cleanly into strong, sealed seams
That is why coated technical fabric, made and welded with care, is the right choice.
Fabric From Biodomes Membranes India
If you need dependable fabric for biogas domes, Biodomes Membranes India supports vendors, dealers and plant owners with coated technical fabric made ready for dual membrane domes. The team works with SIOEN-engineered PVC and PVDF coated fabric, and cuts and welds it in-house to your size and need.
As a dual membrane fabric manufacturer and supplier, Biodomes Membranes India focuses on steady quality, careful welding and reliable supply, so your dome fabric performs well from day one.
Frequently Asked Questions
Why do biogas domes use two membranes?
The inner membrane holds the gas, and the outer membrane protects it from weather and keeps the dome's shape.
Why is fabric welded instead of stitched?
Welding joins the coating into one sealed piece with no holes, which stops gas and water from passing through.
What is PVDF coated fabric used for?
It gives the fabric surface extra protection against dirt and sun, which suits outdoor biogas domes.
